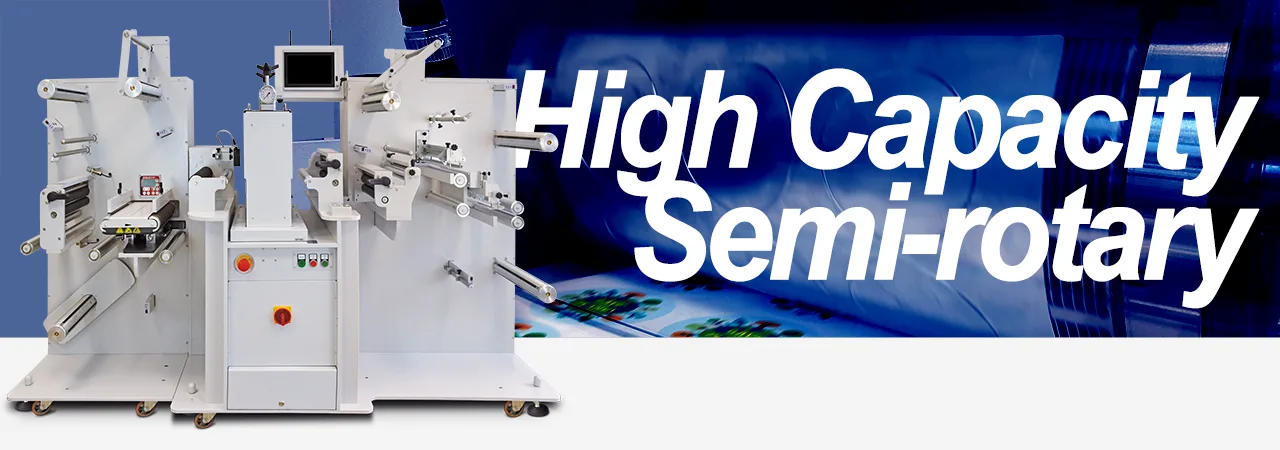

ARIES - Semi-rotary label finishing machine
Precision. Performance. Productivity.
Aries, featuring a high-performance semi-rotary module, is engineered for medium to industrial-scale production, making it the ideal solution for repetitive and high-volume jobs.
Offering an use friendly interface, operators can easily manage all job settings.
The flexible magnetic die plate ensures fast and simple changeovers — it snaps quickly and securely into place, minimizing downtime.
The rotary module incorporates a magnetic cylinder with four alignment pins, allowing for quick die changes and precise positioning of flexible steel dies.
The entire module is electronically adjustable, enabling accurate offset calibration with ease and it includes the Gap Reset option.
Aries is designed to handle both printed and unprinted media rolls, while the on-board 10" touchscreen provides full remote connectivity and control capabilities.Top Features
✓ Ideal for medium to high-volume
production
✓ Supports both printed and unprinted media
✓ Supports both printed and unprinted media
✓ User friendly interface
✓ Energy-efficient operation with just 1kW single-phase power consumption
✓ Kiss-cut functionality
Brochure |
User Manual ARS25PL |
User Manual ARS35PL |
Benefits:

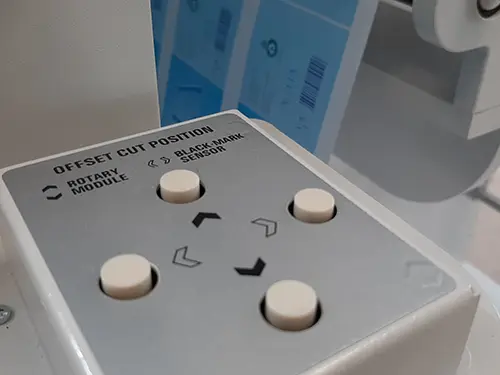

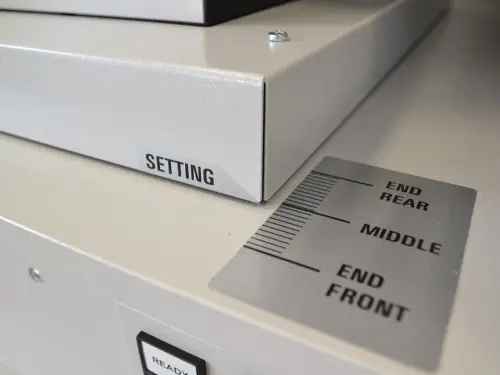

Offset adjustment
Quick and easy system to adjust the cut over the printed artwork.

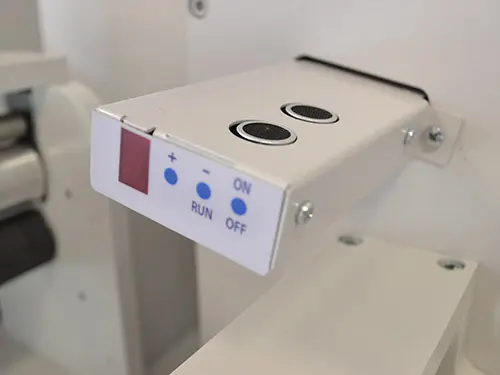

Web guide
As standard, the unit features a web guide to guarantee the media path straight through the unit.
Remote Assistance
Customers whose computers are connected to internet will have access to our knowledgeable support technicians through remote assistance, making it convenient to troubleshooting and resolve any issues.
No material limitless
| ARS1xxxx | ARS2xxxx | |
|---|---|---|
| Web Width | Up to 9.84" (250mm) | Up to 13.78" (350mm) |
| Core diameter | Mechanical (3") | Pneumatic (3") |
| Max. Die cutting Width | 9" (230mm) | 13" (330mm) |
| Input Roll Diameter | 19.68" (500mm) | |
| Lamination | Cold lamination (self-wound or with liner) | |
| Rewinding | Dual-shaft rewinding up to 15.74" (400mm) | |
| Die Plate Size (repeat) | From 5.51" (140mm) to 14.17" (360mm) | |
| Magnetic cylinder | 18" - Z144 mod. 1/8 | |
| Lateral adjustment | +/- 25mm | |

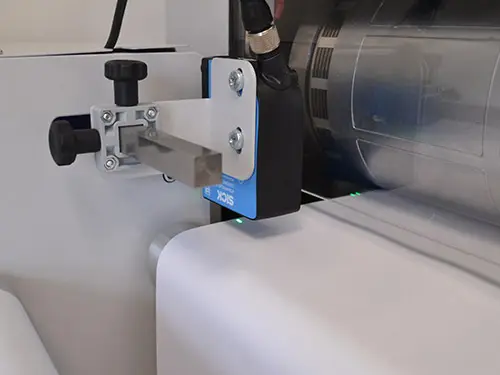

| Registration Mark | Laser / 0.16" x 0.16" (4mm x 4mm) | |
| Minimum Slitting Width | 0.75" (19mm) | |
| Power | 100-240V~1Kw, 50/60Hz | |
| Warranty | 12-month warranty | |
Multiple configurations
The Aries can be configured to perfectly match specific production needs.

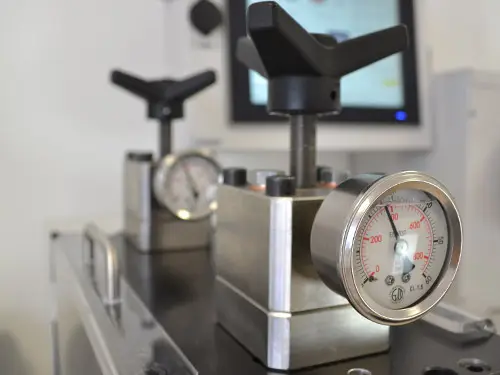

It is available with a "Gap Reset" Adjustable anvil system which allows to adjust the height of the feed roller in order to use the same sheet metal even with different materials of different thicknesses.
Being a modular system, it also allows the installation of varnish modules and a corona treater as retrofit options.
| MODEL | MEDIA WIDTH | GAP RESET | FLOOD VARNISH | SPOT VARNISH WITH COLD FOIL | CORONA TREATER |
|---|---|---|---|---|---|
| ARS | 1 From 3.94" (100mm) up to 9.84" (250mm) |
0 None (retrofit not possible) |
0 None (retrofit possible) |
0 None (retrofit possible) |
0 None (retrofit possible) |
| 2 From 3.94" (100mm) up to 13.78" (350mm) |
1 "Gap Reset" Adjustable anvil system |
1 Full rotary flood varnish module with flexographic station and UV lamp |
1 Full rotary spot varnish module with flexographic station and UV lamp, includes cold foil capability |
1 Vetaphone – 2Kw |
|
| 2 Vetaphone – 4Kw |
Brochure
Aries with the world's most trusted label printers
Join us as we take you on a tour of some worldwide installations featuring our special unit ARIES. Witness its effortless compatibility with the most important and affidable label printers (KONICA MONOLTA, EPSON, HP, SCREEN, AFINIA, ...)
Look here
-
-
In a single pass our semi-rotary cutting machine is capable of laminating, die cutting, waste removal, slitting and rewinding finished labels onto new rolls that are ready for application.
Type of cut: Kiss-cut
No material limitless
-
-

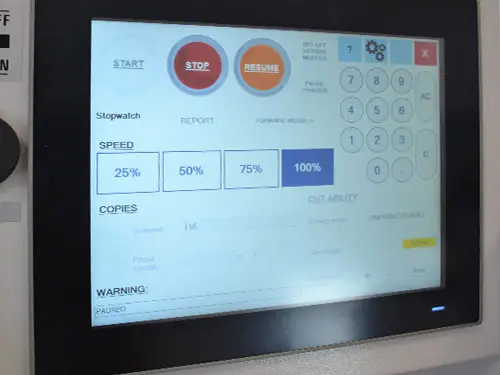

Cutting manager software
This innovative and smart cutting management software allows the operator to easily adjust the work speed and the settings for fabulous cutting, time optimization and less materials waste which in turn = greater profits.
-
-

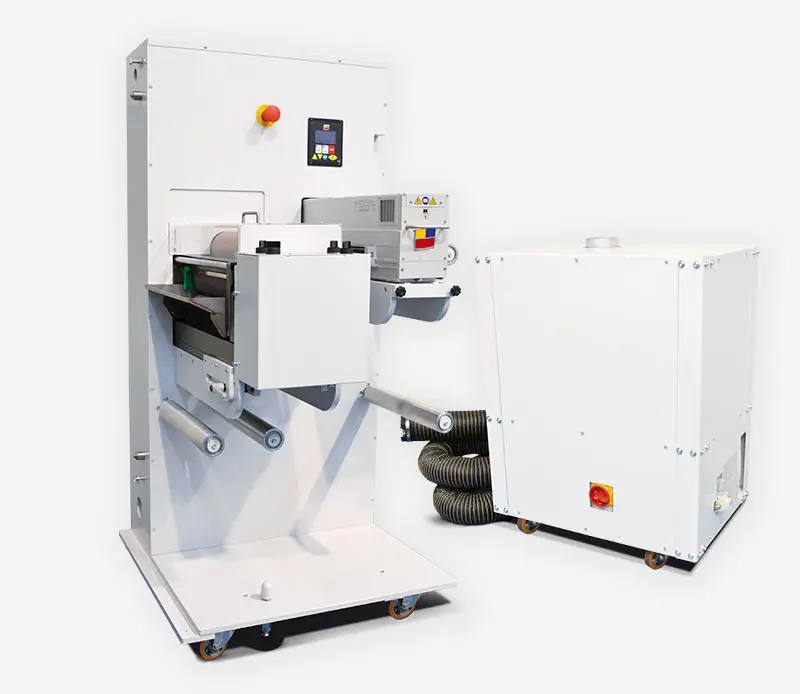

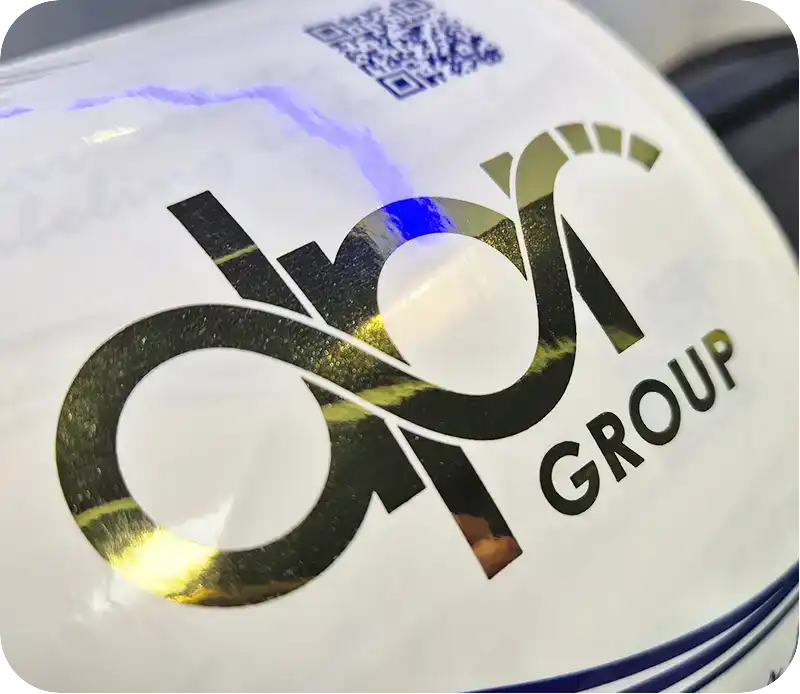

Flood or Spot varnish with cold foil
With the superior finishing achieved by this module, which can also be retrofitted, you can add prestige and extra value to your printed labels.
This versatile unit supports both flood or spot varnish applications, with the option to apply cold foil.
Alternatively, the flexographic unit can serve as a single-color printing station in-line with the Taurus.
An optional slot is also available for installing a Corona treatment device.
Aries with the world's most trusted label printers
Join us as we take you on a tour of some worldwide installations featuring our special unit ARIES. Witness its effortless compatibility with the most important and affidable label printers (KONICA MONOLTA, EPSON, HP, SCREEN, AFINIA, ...)
Look here
| MODEL | LENGTH | WIDTH | HEIGHT | WEIGHT |
|---|---|---|---|---|
| ARS25PL | 87.79" (223cm) | 27.56" (70cm) | 65" (165cm) | 1697lb (770kg) |
| ARS35PL | 90.55" (230cm) | 31.49" (80cm) | 65" (165cm) | 1951lb (885kg) |

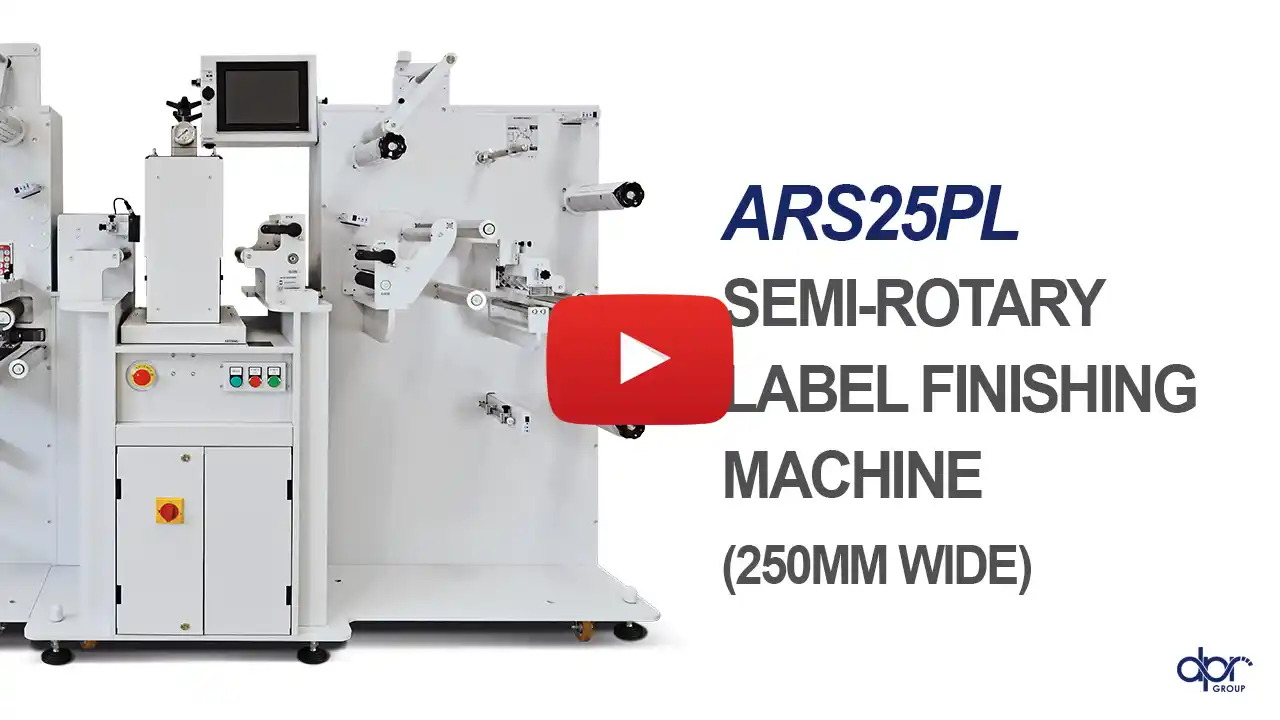

VIDEO
