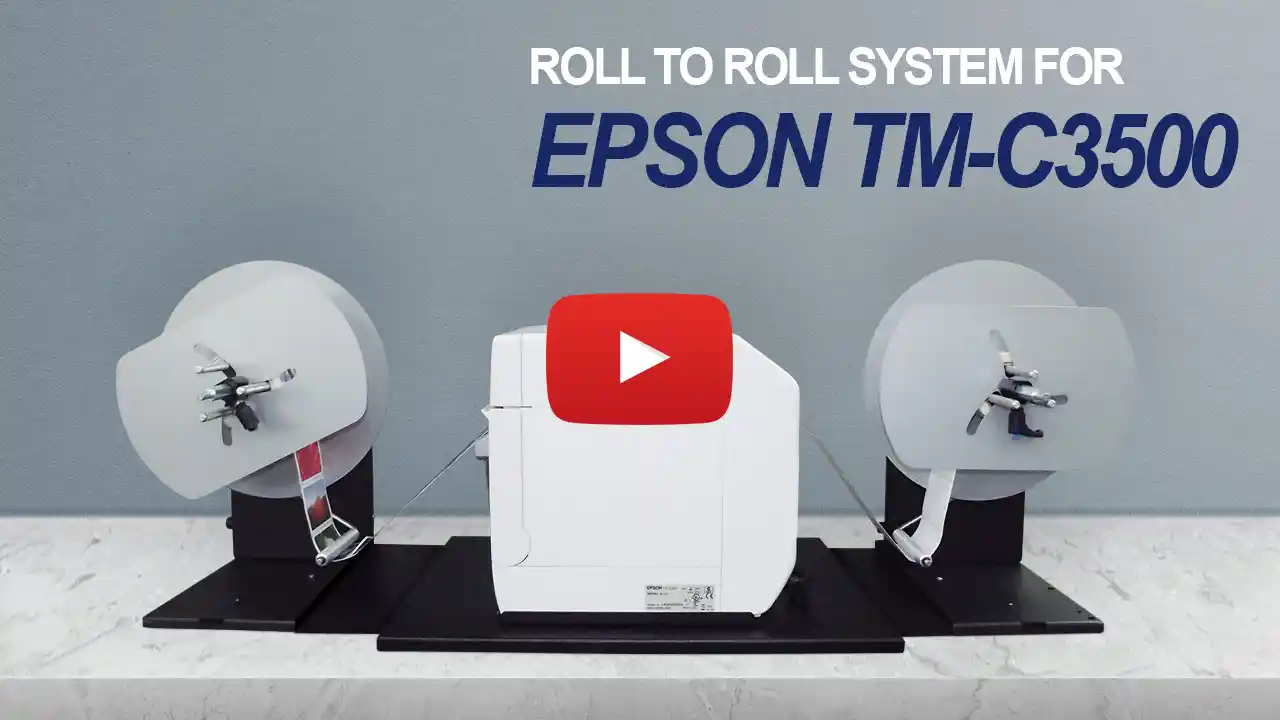

Roll to Roll System for Epson TM-C3500 printer
FEATURES

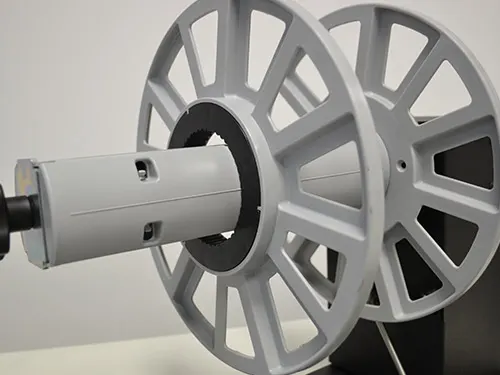

The rewinder and unwinder for Epson TM-C3500 printers are used to manage rolls of media up to 5" (127mm) having an outside diameter up to 10" (250mm). Units are equipped with adjustable core holder 1.57" (40mm) - 4.64" (118mm).

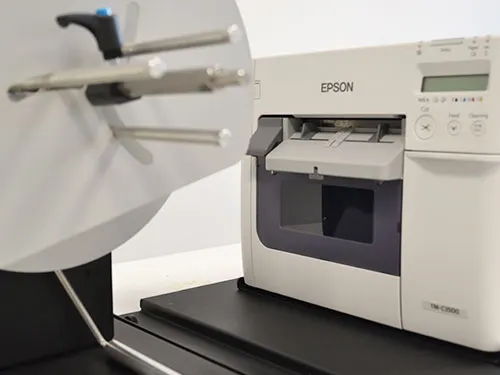

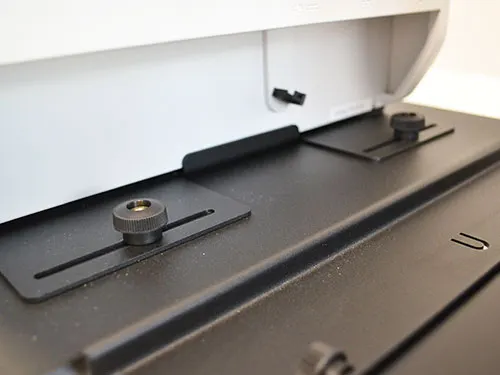

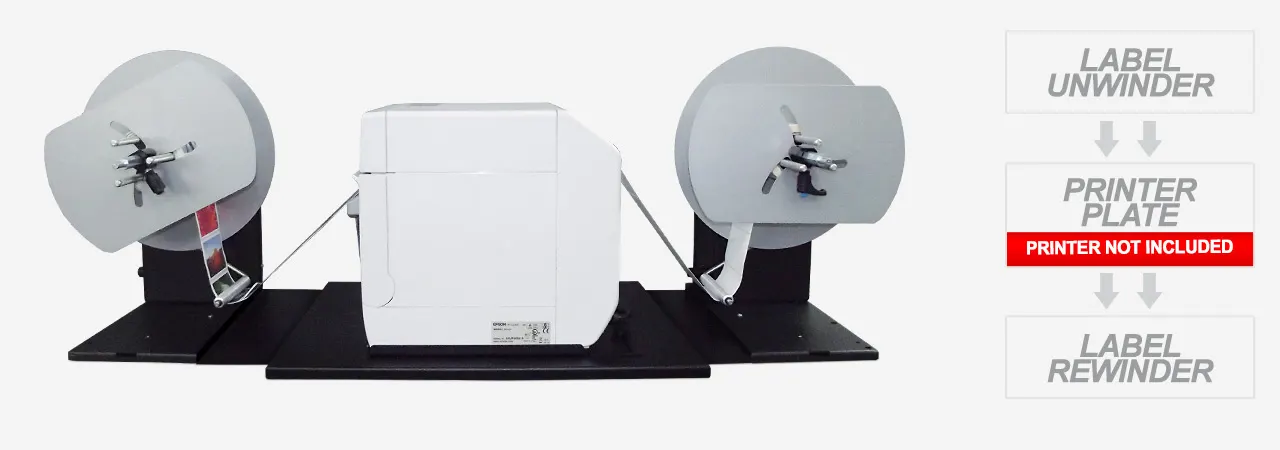

To guarantee an aligned media path in the system, it is available the junction plate to connect the rewinder and unwinder together. It offers also a customized sliding support where lean and fix the Epson printer.

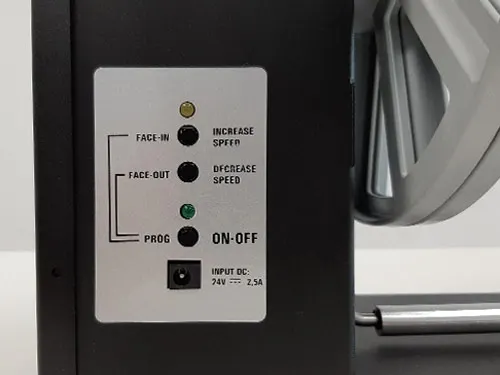

An external power supply 100/240VAC - 2.5A at 24V

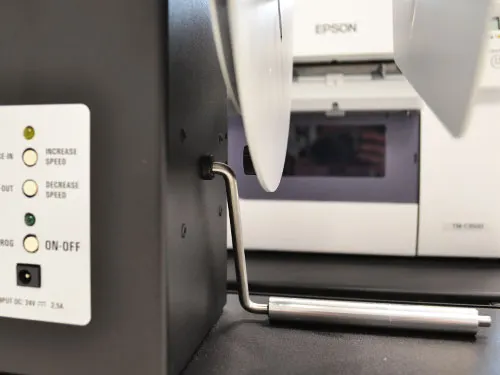

allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction. A 2A fuse is used as protection.
Official page EPSON.
Brochure | User Manual |
| ASS1111-S0 | ASD1111-S0 |
|---|---|
 |
 |

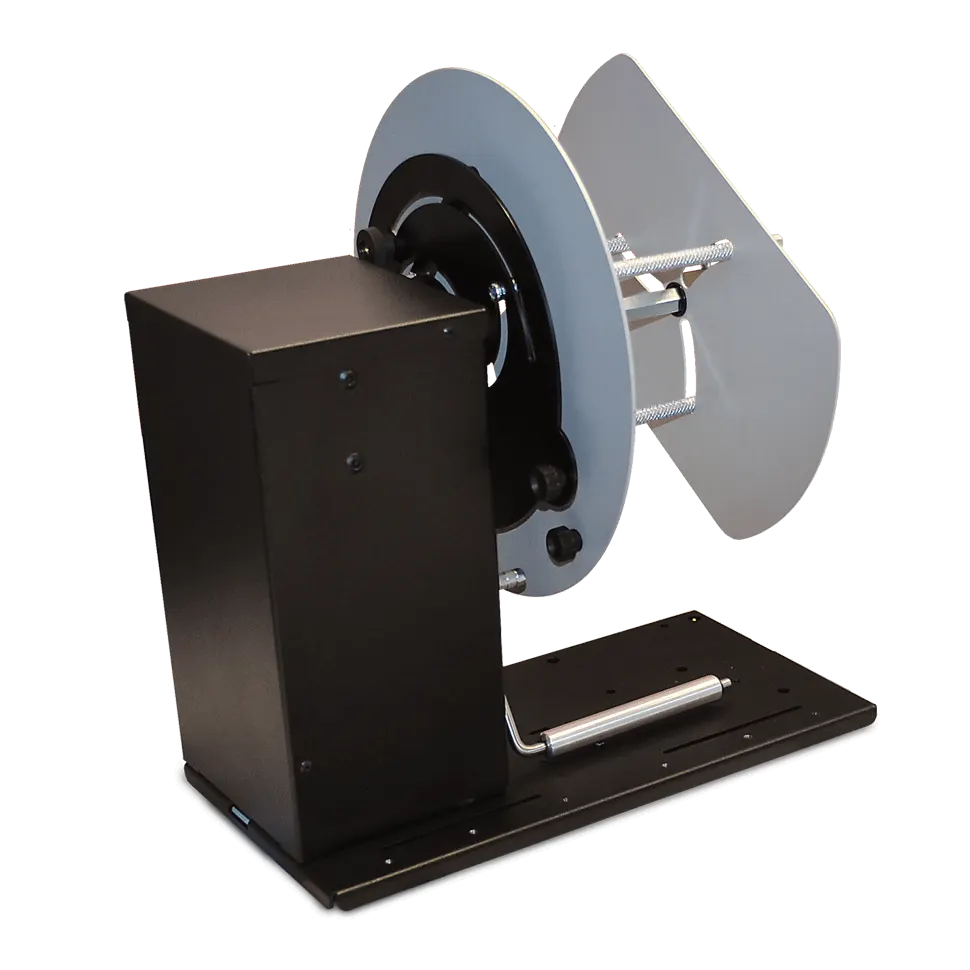

| Label unwinder with 1.57" (40mm) up to 4.64" (118mm) adjustable core holder |
Label rewinder with 1.57" (40mm) up to 4.64" (118mm) adjustable core holder |

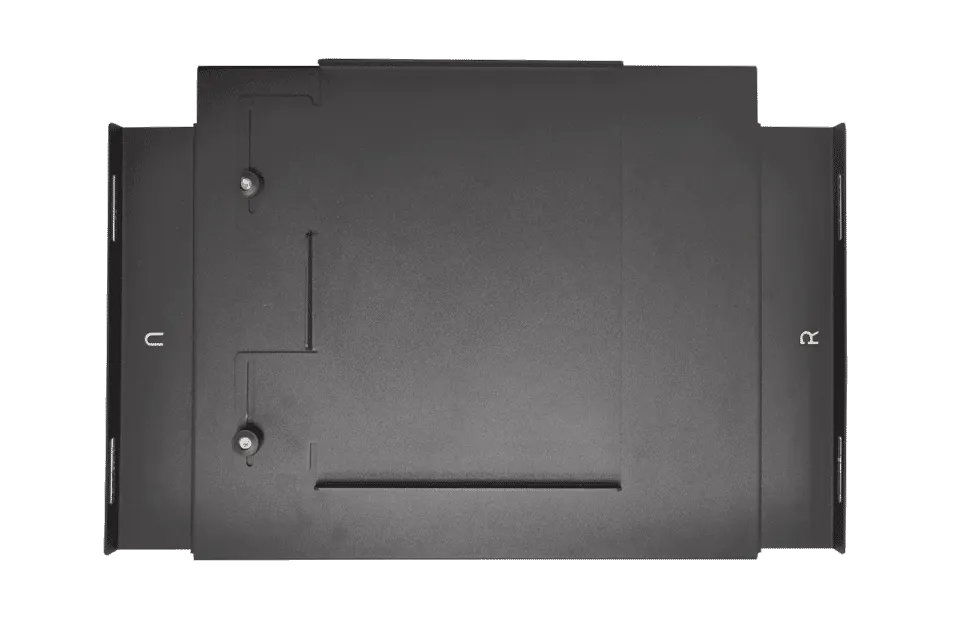

| EPS35-JPL |
|---|
 |
| UW&RW printer plate for EPSON TM-C3500 |
| MODELS | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| All models (second plate included) |
19.93" (43cm) | 13.78" (35cm) | 14.17" (36cm) |
| Printer Plate (EPS35-JPL) |
22.04" (56cm) | 14.96" (38cm) | / |
